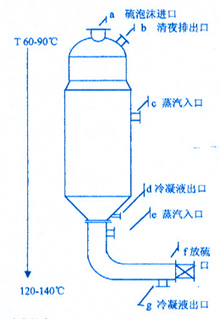

As drawn: Sulphur and foam that the
recycled system of the desulphurization collects enter sulphur and
retrieve the cauldron from in charge of a oncing, when the steam is
heated, supplies temperature is it have low high gradient distribute
to form in the cauldron under the function of piece in cauldron. Sulphur
and particle assemble and increase to separate from solution while
heating to 60-90 degrees, the solution is discharged from in charge
of b oncing, continue using back to the desulphurization system. The
sulphur and particle enter the high-temperature district of underpart
, after melting , discharge the mould for casting through keeping
valve f warm. Under the certain situation , control as steam b and
f two valve of Dg50 can realize continuous charge-in , rank the liquid
, the craft course of the sulphur set free in succession in succession
only. Supplies in orderly evaporation without solution of flow regime
, concentrating the course all the time in the cauldron in the course
this. Therefore, there is no traditional sulphur formulation of the
dreg while retrieving, the rate of recovery of the sulphur is raised
by 20%, can also save a large amount of vapour , enable operating
the simplification changing. |
|
| |
|
|
|
